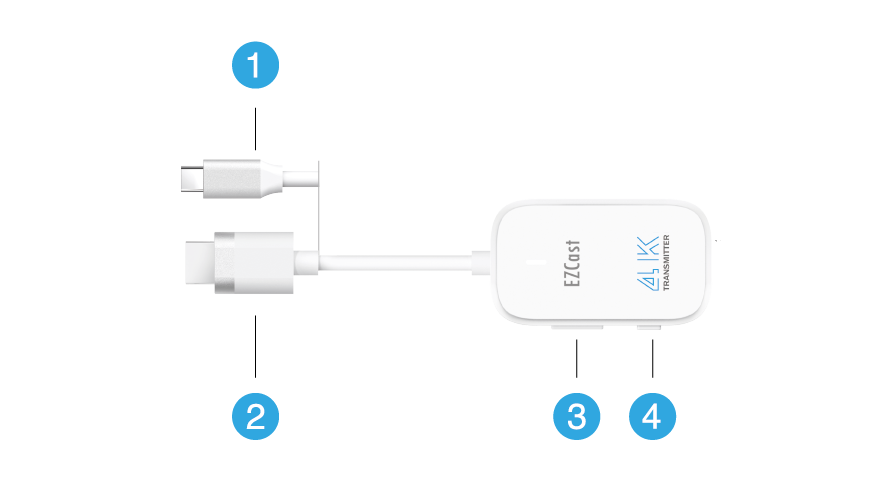

Transmitter

Easily mirror whatever shows on your laptop or mobile screen, ideal for video-watching and idea sharing.
* The Type-C connector model is the C-1, while the HDMI connector model is the H-1.

1. Type-C
2. HDMI
3. Mirror / Pair
4. Reset

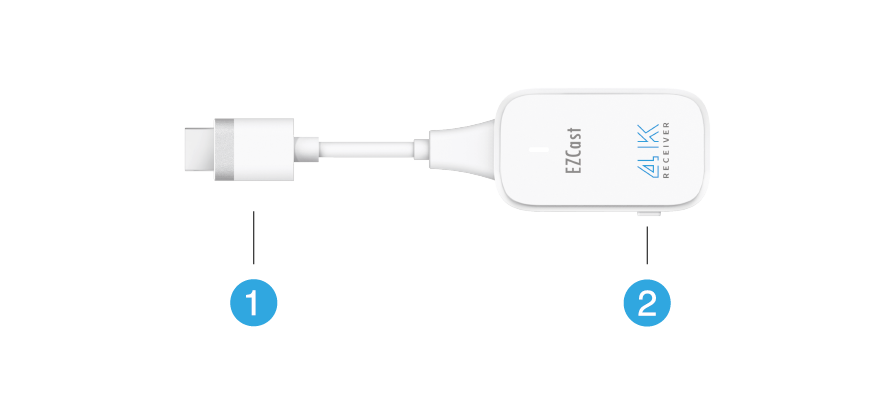

Receiver (4KR-1)

Display the contents passed from your transmitter on the big screen like 4K TV or projector screen.

1. HDMI
2. Reset

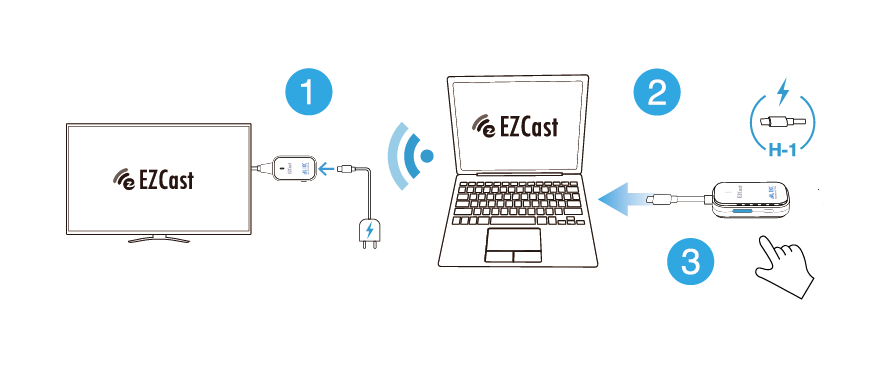

How to mirror

1. Install the receiver：Connect the receiver to the HDMI port on TV, and power on by an independent power 5V/1A adapter.
2. Plug and play：Connect the transmitter to the Type-C or HDMI port of your laptop or mobile, wait for a few seconds until the flashing light on the transmitter stops, and then the screen will automatically project.
* When using the Transmitter H-1 (HDMI connector), using the Type C connector connects to an independent power 5V/1A adapter.
3. Stop and restart mirroring：Press the mirror / pair button on the transmitter to stop mirroring or restart mirroring.
